Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
31200-890-802
Description

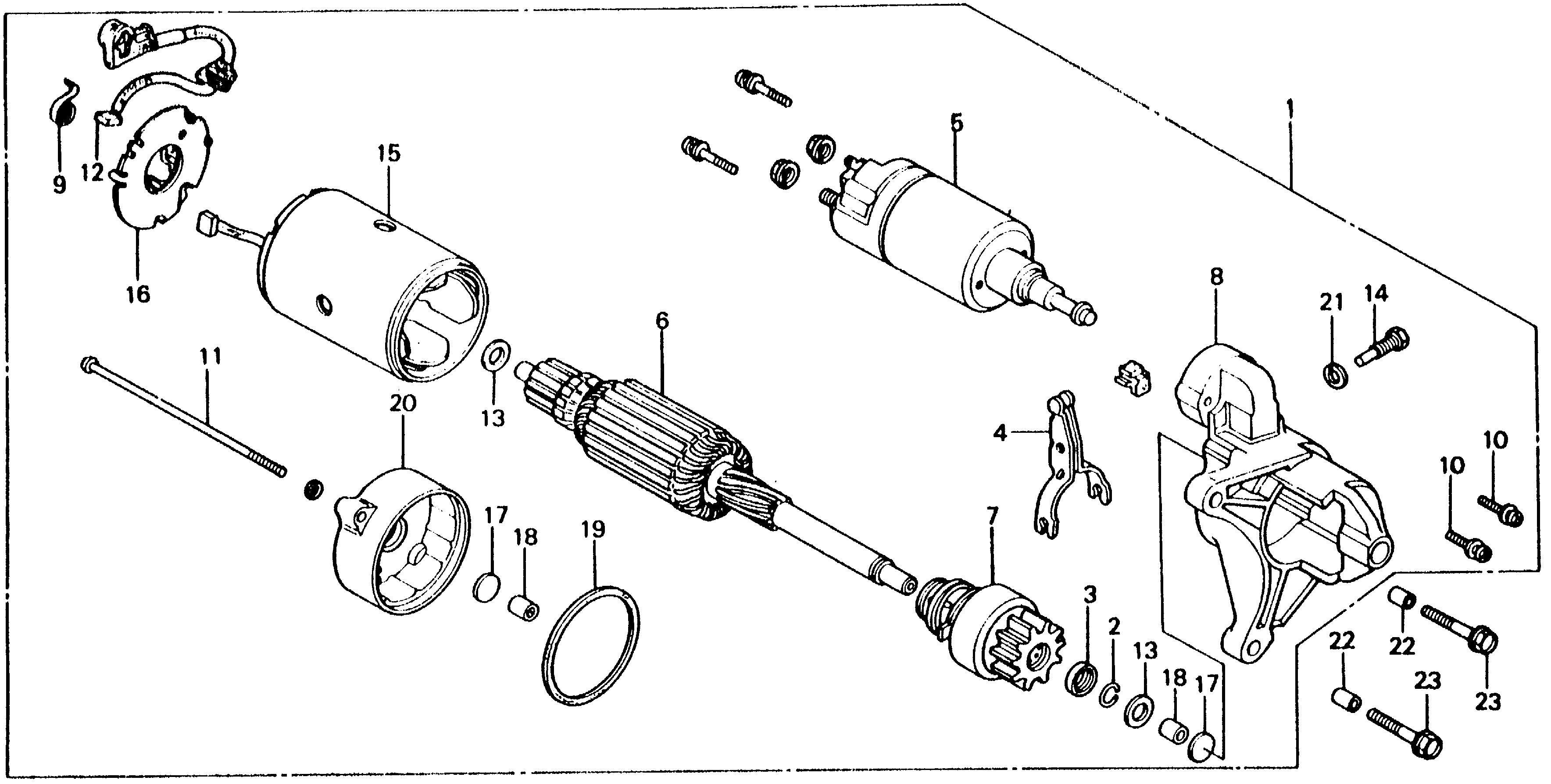

STARTER MOTOR ASSY.
Serial Range
1000001 - 1294567

Ref No
2
Part Number
31201-590-004
Description
RING, SNAP (NOT AVAILABLE)
Serial Range
1000001 - 1294567

Ref No
3
Part Number
31202-590-004
Description
COLLAR, CLUTCH STOP (NOT AVAILABLE)
Serial Range
1000001 - 1294567
Qty
Price
$6.40

Ref No
4
Part Number
31203-611-004
Description
LEVER, PINION DRIVE (NOT AVAILABLE)
Serial Range
1000001 - 1294567

Ref No
5
Part Number
31204-890-801
Description
SWITCH, MAGNETIC (NOT AVAILABLE)
Serial Range
1000001 - 1294567

Ref No
6
Part Number
31206-890-801
Description
ARMATURE (NOT AVAILABLE)
Serial Range
1000001 - 1294567

Ref No
7
Part Number
31207-890-801
Description
PINION
Serial Range
1000001 - 1294567
Qty
Price
$114.27

Ref No
8
Part Number
31208-890-801
Description
CASE, GEAR
Serial Range
1000001 - 1294567
Qty
Price
$63.34

Ref No
9
Part Number
31212-611-004
Description
SPRING, BRUSH (NOT AVAILABLE)
Serial Range
1000001 - 1294567

Ref No
10
Part Number
31213-611-004
Description
SCREW, MAGNETIC SWITCH SETTING
Serial Range
1000001 - 1294567
Qty
Price
$4.54

Ref No
11
Part Number
31214-611-004
Description
BOLT, THROUGH (NOT AVAILABLE)
Serial Range
1000001 - 1294567
Qty
Price
$5.38

Ref No
12
Part Number
31215-890-801
Description
BRUSH (NOT AVAILABLE)
Serial Range
1000001 - 1294567
Qty
Price
$4.19

Ref No
13
Part Number
31216-611-004
Description
WASHER
Serial Range
1000001 - 1294567
Qty
Price
$3.49

Ref No
14
Part Number
31217-890-801
Description
SCREW, POLE CORE SETTING
Serial Range
1000001 - 1294567
Qty
Price
$3.81

Ref No
15
Part Number
31218-890-801
Description
COIL, FIELD (NOT AVAILABLE)
Serial Range
1000001 - 1294567
Qty
Price
$81.64

Ref No
16
Part Number
31231-890-801
Description
HOLDER, BRUSH (NOT AVAILABLE)
Serial Range
1000001 - 1294567
Qty
Price
$22.96

Ref No
17
Part Number
31232-611-004
Description
COVER, BEARING
Serial Range
1000001 - 1294567
Qty
Price
$4.19

Ref No
18
Part Number
31233-611-004
Description
BUSH, BEARING (NOT AVAILABLE)
Serial Range
1000001 - 1294567
Qty
Price
$9.92

Ref No
19
Part Number
31234-611-004
Description
GASKET, RUBBER PLATE
Serial Range
1000001 - 1294567
Qty
Price
$7.23

Ref No
20
Part Number
31219-611-004
Description
COVER, RR.
Serial Range
1000001 - 1294567
Qty
Price
$33.43

Ref No
21
Part Number
94111-08000
Description
WASHER, SPRING (8MM)
Serial Range
1000001 - 1294567
Qty
Price
$0.69

Ref No
22
Part Number
94301-10160
Description
PIN, DOWEL (10X16)
Serial Range
1000001 - 1294567
Qty
Price
$1.55

Ref No
23
Part Number
95701-08035-08
Description
BOLT, FLANGE (8X35)
Serial Range
1000001 - 1294567
Qty
Price
$1.10
